Image List 📋

The image list page aggregates available public and private images, supporting search and filtering, sharing, tag and architecture management, batch operations, and import features.

Accessing the Image List Page

Navigate to this page via the sidebar: 「Data & Images > Image Management > Image List」.

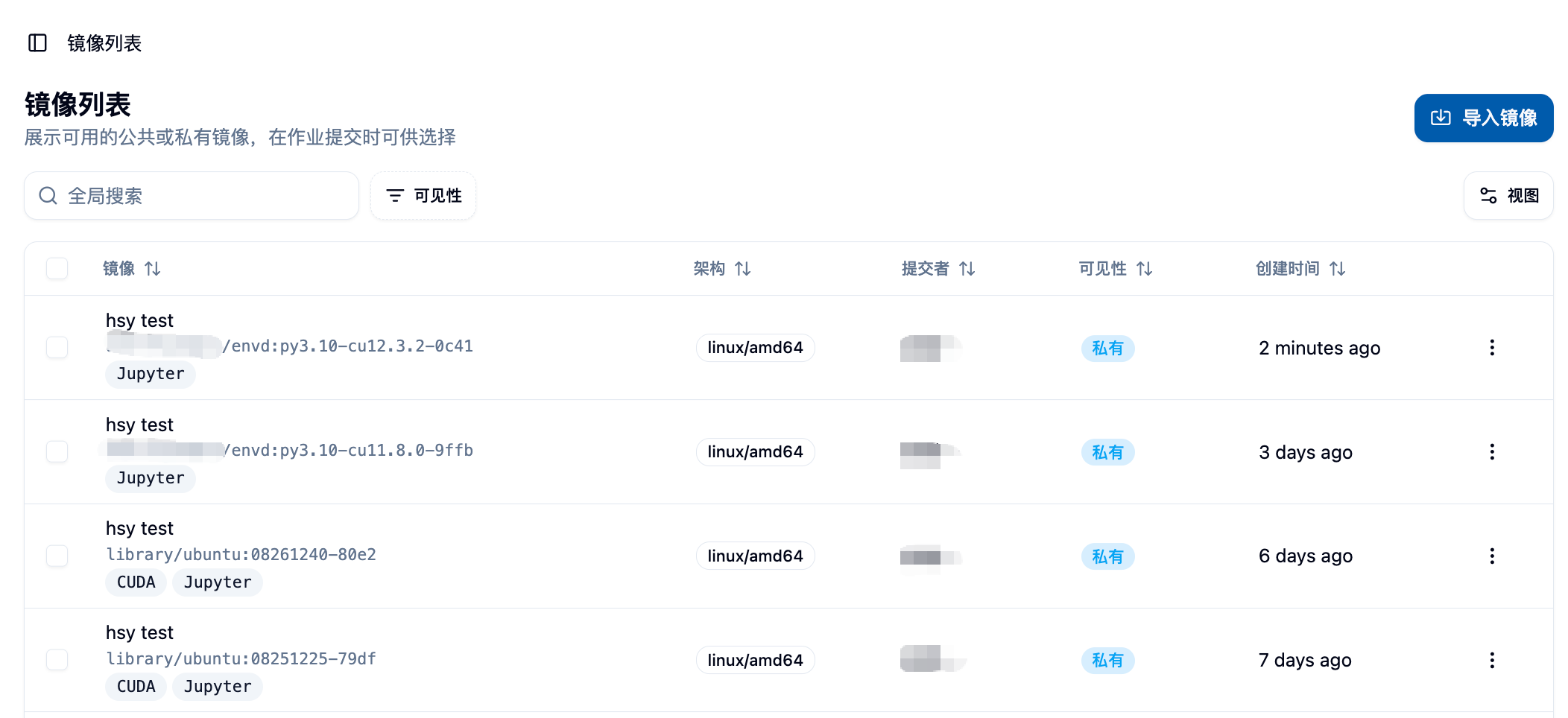

Please paste a screenshot of the main image list page here.

Page Overview 🎯

The image list displays your available image sources:

Images you created (built on the platform or imported) 🏭
Images made public by others 🌍
Images shared with you 🤝

Default columns include:

Image & Description: Image link + short description
Architecture: Supported CPU architectures (e.g., amd64, arm64)
Contributor: Image creator/owner
Visibility: Public or private
Creation Time: Time of creation

Search & Filter 🔍

Global Search

Enter keywords in the top search box to quickly locate images by name, description, tags, etc. ⚡
Search results update in real time as you type.

Filter by Conditions

Visibility: View only public / View only private
(Optional) Other filters: Based on page configuration

For images built on the platform, clicking on 「Image & Description」 navigates to the build details page, where you can view build logs, Dockerfile/Envd, etc.
For images imported from external sources, only basic information is shown (no navigation available).

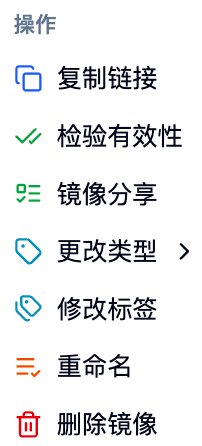

Common Operations (Single Image) ⚙️

In the 「Actions」 menu for each row, you can:

Copy Link: One-click copy of the full image address 📋
Validate: Check if the image link is valid, return the results (option to delete invalid items) ✅

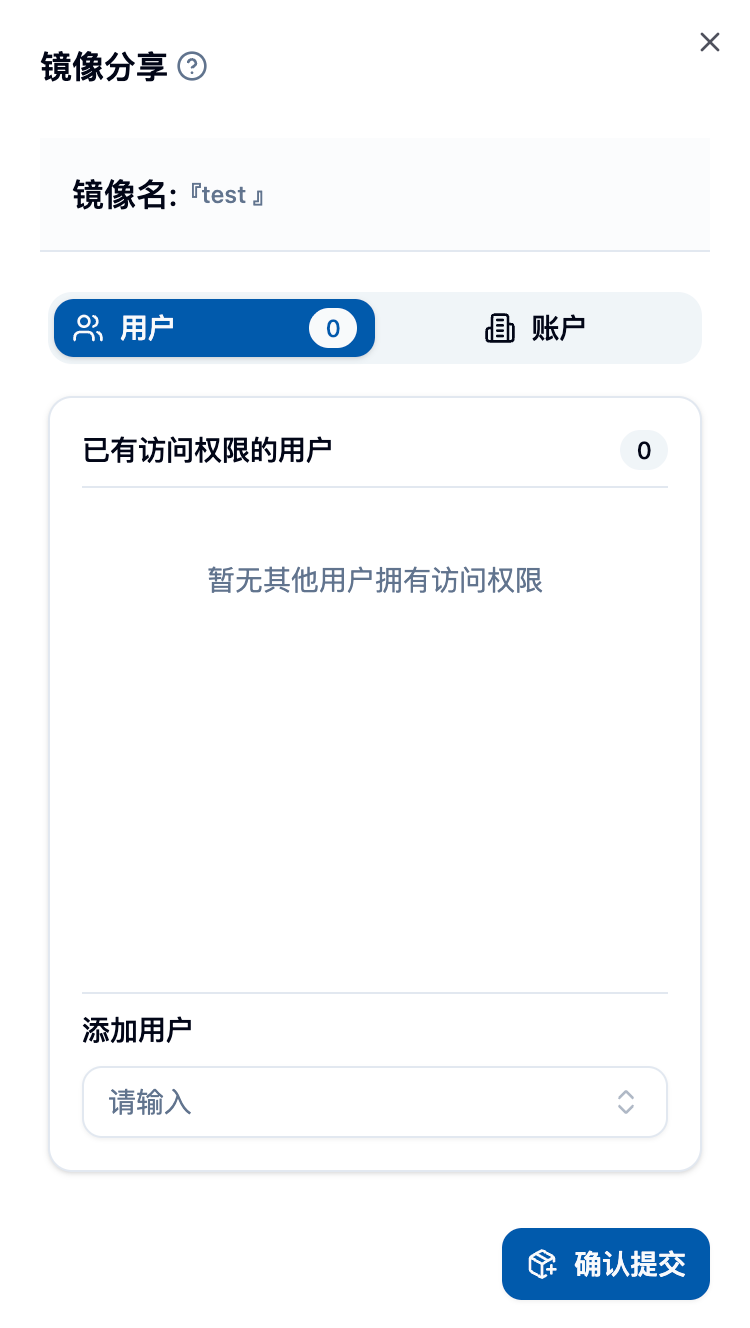

Share Image: Share the image with specific users or accounts (support revocation) 🤝
Change Type: Set the image task type label (e.g., Jupyter, Pytorch, Ray, Custom, etc.) 🏷️
Modify Tags: Add/remove image tags, for better classification and search 🔖
Set Architecture: Configure the CPU architecture supported by the image (e.g., amd64, arm64) 🏗️
Rename: Change the image description name (without altering the actual image address) ✏️
Delete: Remove the image link 🗑️

Permission Notes:

Regular users can only operate on images they own;
Visibility (public/private) switching is usually limited to administrators;
Sensitive operations like sharing and deletion require secondary confirmation.

Batch Operations 📦

After selecting multiple entries, you can perform:

Batch Delete: Delete multiple image links at once 🗑️

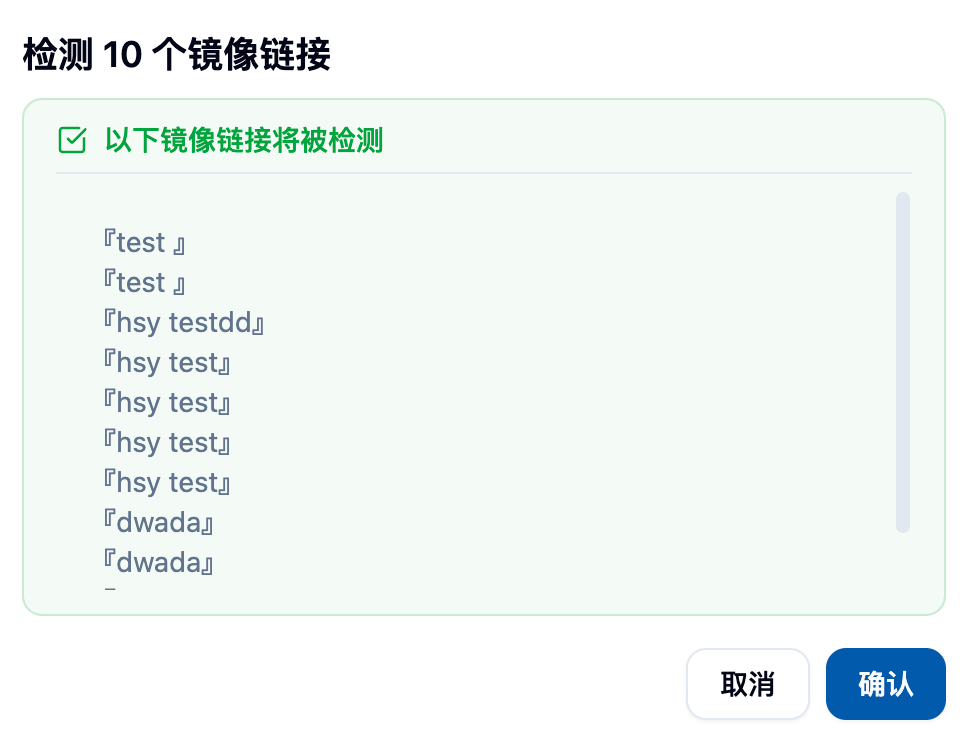

Batch Validate: Batch check, supporting bulk handling of invalid entries ✅

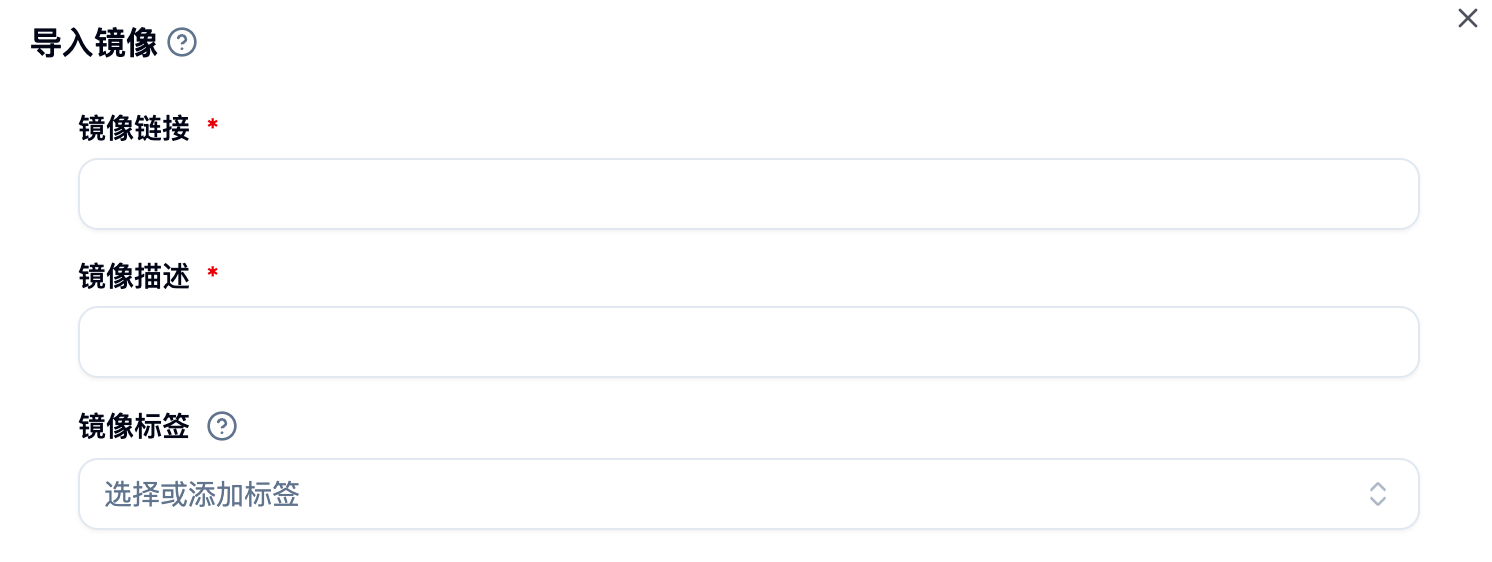

Import Image 📥

Click 「Import Image」 in the top-right corner to register an existing image to the platform (no build is triggered).

Form fields:

Image Link: Complete address (example: registry.example.com/ns/image:tag)
Image Description: Used for display in the list and identification
Tags: Optional, for categorization and retrieval

The image link must conform to the standard format (including repository, namespace, and tag). If it cannot be parsed, the submission will be rejected.

Grant access to specified users or account groups
View and revoke shared recipients at any time
After sharing, the recipient can view and use the image in their image list

Using Images

When submitting a job (interactive or batch), you can directly select an image from this list in the image selector
It is recommended to add clear descriptions and tags to frequently used images for quick retrieval

Best Practices & Recommendations 💡

Naming Convention: Be clear, include usage and version information 📝
Tag Management: Tag by project, framework, or version for better team collaboration 🏷️
Regular Checks: Use batch validation to clean up invalid images 🔍
Architecture Matching: Ensure the image's architecture matches the compute node (e.g., arm64/amd64) ⚙️

Frequently Asked Questions

Validation Failed: Check repository network connectivity or verify the link's correctness
Cannot Delete: Confirm if you are the image owner; administrators can contact platform support
Cannot Share: Confirm that the target user/account exists and is active
